Revel C763 In Ceiling Speaker Each

Revel C763 In Ceiling Speaker Each

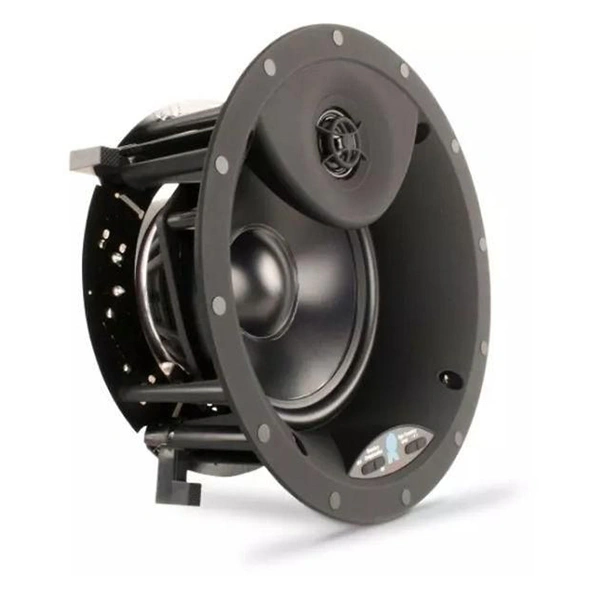

• A 6 ½" In-Ceiling Loudspeaker.
• 1-inch (25mm) angle-adjustable, metal-dome tweeter.

• Long-throw woofers with cast frames and rubber surround.

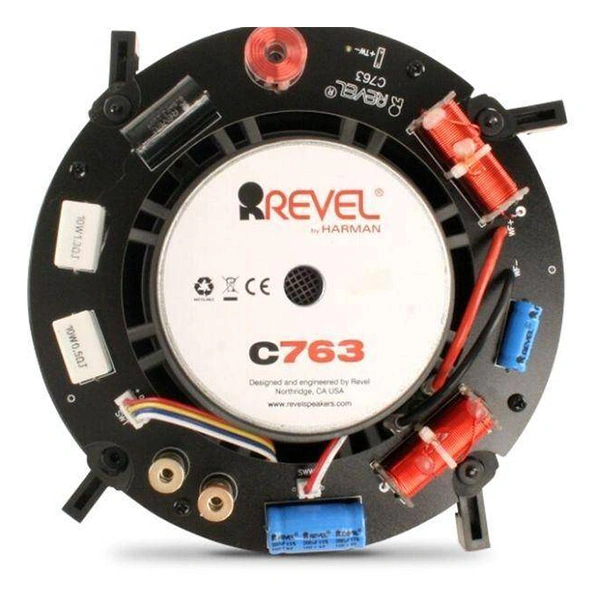

• High-order crossover network with premium-quality components.
• Boundary compensation switch (C783/C763).

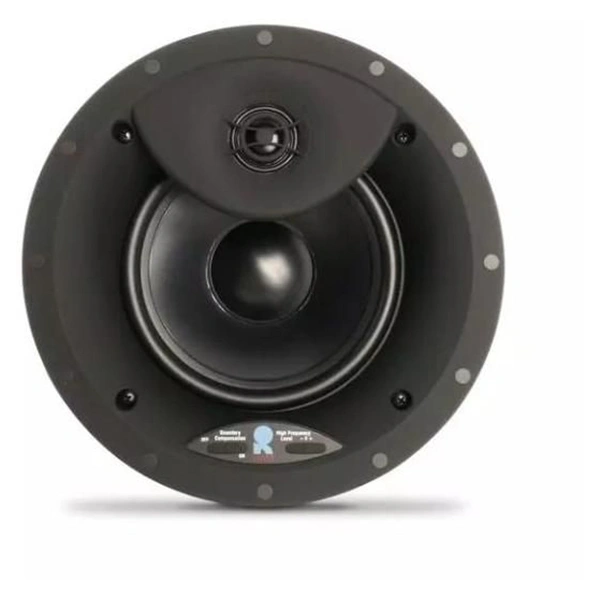

• Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.

We Only Sell 100% Original, Top-Quality Revel Genuine Products.

We Only Sell 100% Original, Top-Quality Revel Genuine Products.

Specifications

⚡General

• Brand: Revel
• Model: C763
• Color: white

⚡Features

• Features: Includes both round and square zero-bezel magnetic grilles Round grille finished dimension (dia.) 9.1" (23.1 cm)
• High Frequency Driver Components: 1" aluminum domes swiveling high-output tweeter with waveguide
• Low Frequency Extension: High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation
• Mid-Frequency Driver Components: Two 3.5" micro-ceramic composite (MCC) cone Cast-aluminum frame high-output midranges

• Mounting: C-2 fastening mechanism Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
• Recommended Amplifier Power: 10 - 140 Watts RMS

⚡Dimension

• Height: Cutout dimensions (dia.) 8" (20.3 cm) Square grille finished Height 9.1" (23.1 cm)
• Width: Square grille finished Width 9.1" (23.1 cm
• Depth: Mounting depth 4.9" (12.5 cm)
• Weight: 1.1 Kg

⚡Warranty

• Warranty Type: Manufacturers
• Warranty Period: 1 Year
