Revel
Revel C383 In Ceiling Speaker Each
₹ 0
₹ 33,990
100%
Highlights
✔ High-order crossover network delivers accurate timbre reproduction
✔ Integrated waveguide provides optimized response both on and off axis
✔ Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
✔ High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction Revel C383 In Ceiling Speaker Each
- This entirely new range of in-wall loudspeakers combines Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek look that integrates easily into any décor.
- Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion

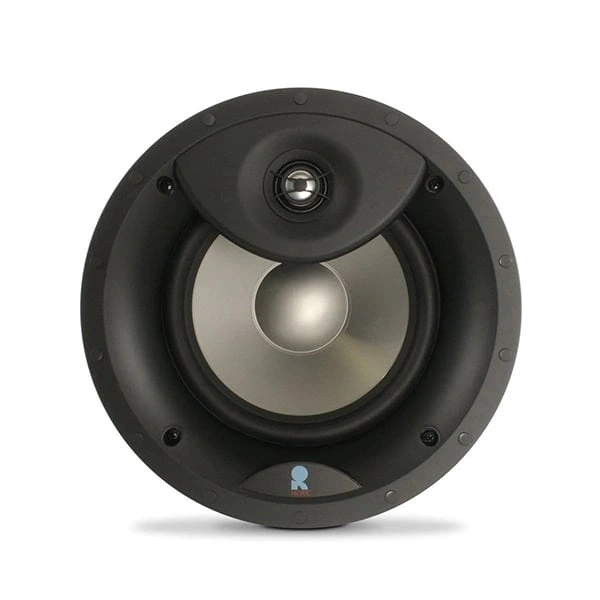

- 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
- High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
- Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
- Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
We Only Sell 100% Original, Top-Quality Revel Genuine Products.
We Only Sell 100% Original, Top-Quality Revel Genuine Products.
Specifications
⚡General
- Brand: Revel
- Model: Revel C383 In Ceiling Speaker

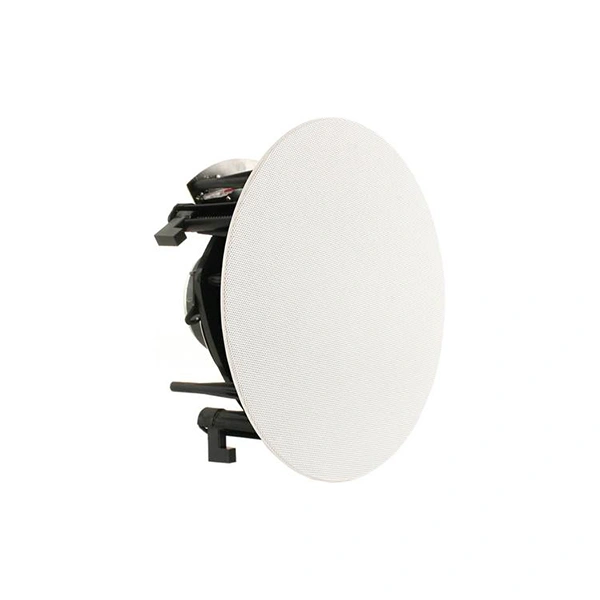

- Features: Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm High Frequency Driver Components: 1" aluminum dome swiveling tweeter with waveguide
- Low Frequency Driver Components: 8” Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
- Low Frequency Extension: High Frequency Extension (-10dB) 3-position HF level control
- Mounting: C-2 fastening mechanism Compatible with wall material thickness range 0.5" – 1.0” (1.3 cm – 2.5 cm)
- Depth: Mounting depth 3.7" (9.4cm)
- Weight: 2.2Kg
- Recommended Amplifier Power: 10 - 125 Watts RMS
⚡Warranty
- Warranty: 1 Year
